Secure Encryption Key Deletion

Overview​

Conduktor Shield feature

Conduktor provides a cost-efficient and scalable solution for securely deleting encryption keys (crypto shredding) that works seamlessly with Kafka. Keys are centrally managed and securely stored which ensures that deleting a key instantly makes all associated data unreadable, without the complexity of self-managed vaults, expensive per-user encryption or additional infrastructure overhead.

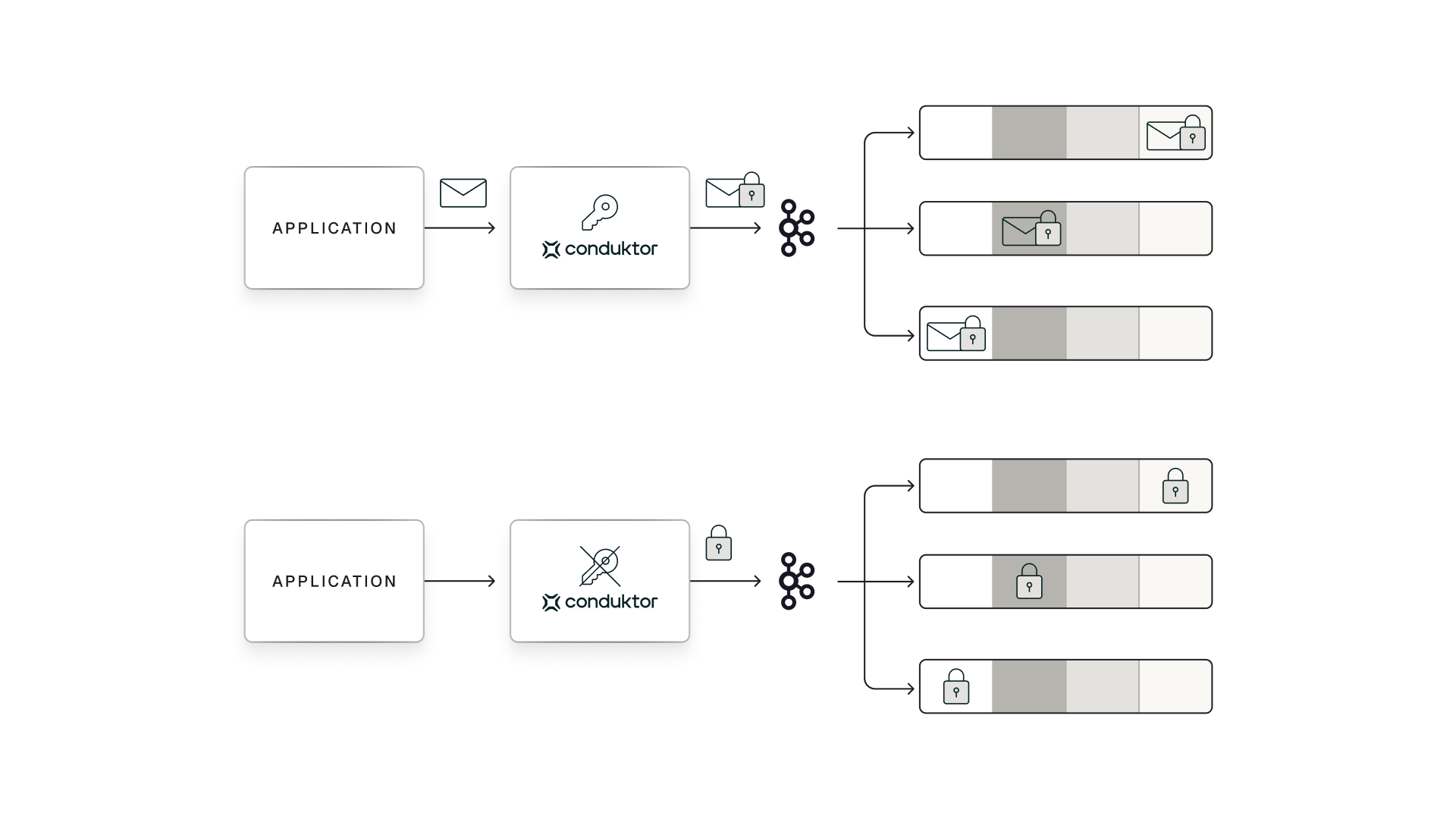

Crypto Shredding Explained

Crypto shredding is like throwing away the only key to a locked safe. Without the key, the contents are inaccessible forever.

Crypto shredding is the process of making encrypted data permanently unreadable by securely deleting the encryption keys.

Conduktor's crypto shredding solution

Conduktor's crypto shredding solution allows you to honor deletion requests and maintain compliance with regulations like GDPR (General Data Protection Regulation) and CCPA (California Consumer Privacy Act). It is also particularly valuable for organizations that need to operate at scale across large user bases or high-volume data sets, offering both substantial cost savings and improved performance compared to managing individual keys directly in an external KMS such as AWS.

Conduktor's solution:

  • stores only a single master key in your external KMS
  • securely manages every individual encryption key needed in Gateway's internal key store
  • allows individual encryption keys to be deleted when needed, rendering the associated data permanently inaccessible

How does it work?​

  • Gateway is configured to encrypt a combination of the record key, the record headers and either the entire record value or individual fields from a structured document (JSON or AVRO).
  • It does this using an encryption key with an id derived from a property of each record (eg a field or key value that uniquely identifies the associated user)
    • This encryption key is called a DEK (short for Data Encryption Key) and is how we will refer to it for the rest of the document.
    • The DEK is securely and configurably generated by Gateway using the TINK AEAD cryptographic library
  • Gateway encrypts the DEK before storing it using a single master encryption key provided by an external KMS (e.g. AWS KMS).
    • The master encryption key is called a KEK (short for Key Encryption Key) and is how we will refer to it for the rest of the document.
    • The encrypted DEK is called an EDEK (short for Encrypted Data Encryption Key) and is how we will refer to it for the rest of the document.
  • The EDEK is stored in a dedicated compacted Kafka topic called the Encryption Keys Store.
    • This store is secure because an EDEK cannot be decrypted without the KEK from the KMS.
  • Overwriting an EDEK in the Encryption Keys Store makes the associated encrypted data permanently undecryptable via Gateway.

You can read about how Gateway manages encryption here.

Sample use case​

This document will step through,

  1. setting up a local Gateway to encrypt sensitive user data sent to a Kafka topic using the Gateway KMS
  2. decrypting data read off the same Kafka topic via Gateway (in order to demonstrate normal working conditions)
  3. crypto shredding an EDEK such that associated data can no longer be decrypted by Gateway

We will configure Gateway to encrypt sensitive customer data (password, visa) using a DEK derived from a unique customer identifier (userId). Other data (eg name) will be left un-encrypted. All of the data will come from the same simple json payload. For example, we might expect to see

{
  "userId" : 12345678,
  "name" : "Joe Smith",
  "password" : "admin123",
  "visa" : 4111111145551142
}

encrypted as,

{
  "userId" : 12345678,
  "name" : "Joe Smith",
  "password" : "AAAABQAAAAKNxgtetTtIBLsCuCd5LJ7kYDspZqsfUhWRY7lDlVIWF2UgALxI8WEzcXAxEjuuWFiq+Kb8K6pTA5IPeg==",
  "visa" : "AAAAAgAAAAKNxgtetTtIBLsCuCd5LJ7k5Dab7pJ9dEQtf5TjHM1ZasVGOEeYI5Vna/HyDGQTZqYT0KWAAjsoe17+F8nPbFlX5Ms7n6ryCyTPyYPLi/hKMd5JDQAJAdfg/2FRtpHui3MaUjsipuo+7gdnU7HKEd64Hi/+hH2jQxQVJOoujxg="
}

1. Setup an environment​

The following Docker Compose file will minimally configure Kafka, the Conduktor platform and a Vault KMS instance to work together. We will then manually configure them for our encryption use-case.

docker compose -f docker-compose.yaml up -d

2. Gateway Encryption interceptor configuration​

We will use the following encryption interceptor configuration to implement our use-case. Note the following,

  • Encryption will only be applied to the customers topic
  • Gateway will use (and create if necessary) a single Vault KMS key called /transit/keys/master-key
  • Each record will have an Encryption Keys Store Entry derived from the record value userId (as templated in the configuration).
    • Each Encryption Keys Store Entry will have a DEK generated by Gateway and encrypted with the KMS KEK.
    • Each DEK will be used to encrypt the password and visa fields.
    • For example the sample JSON from earlier would have an Encryption Keys Store Entry with id secret-for-12345678 and the associated DEK would be used to encrypt both the password field admin123 and the visa field 4111111145551142.
  • This configuration requires raw JSON, AVRO or protobuff record values to be sent. We will send JSON.

The interceptor configuration can be applied to Gateway via the Conduktor CLI or via the Console UI and has a different format in each case.

apiVersion: gateway/v2
kind: Interceptor
metadata:
  name: sensitive customer data encryption
spec:
  pluginClass: io.conduktor.gateway.interceptor.EncryptPlugin
  priority: 100
  config:
    topic: customers
    kmsConfig:
      vault:
        uri: http://vault:8200
        token: "vault-plaintext-root-token"
        version: 1
      gateway:
        masterKeyId: vault-kms://vault:8200/transit/keys/master-key
    fields:
      - fieldName: password
        keySecretId: gateway-kms://secret-for-{{record.value.userId}}
        algorithm: AES128_GCM
      - fieldName: visa
        keySecretId: gateway-kms://secret-for-{{record.value.userId}}
        algorithm: AES128_GCM

To deploy this interceptor configuration paste it into a file called encryption-interceptor.yaml in the same directory as your docker-compose.yaml and run the following command

docker compose exec -it conduktor-ctl conduktor apply -f /conduktor-ctl/encryption-interceptor.yaml

You should see the following output

Interceptor/sensitive customer data encryption: Created

The reference documentation has more information about configuring Encryption in Gateway for other use-cases.

3. Producing encrypted data​

With encryption configured we can now produce records via Gateway that will be encrypted at rest on disk in the backing Kafka cluster and when re-reading via Kafka or Gateway.

# 1. Create a 'customers' topic to match the topic 'sensitive customer data encryption' is configured to encrypt records produced to
docker compose exec kafka-client kafka-topics --create \
  --bootstrap-server kafka-1:9092 \
  --replication-factor 1 \
  --partitions 3 \
  --topic customers

# 2. Produce a record with '10000001' to topic 'customers' (we'll crypto shred this later)
echo '{ "userId" : 10000001, "name" : "Joe Smith", "password" : "admin123", "visa" : 4111111145551142 }' | \
docker compose exec -T kafka-client \
  kafka-console-producer --bootstrap-server conduktor-gateway:6969 \
  --topic customers

# 3. Produce a record with '10000002' to topic 'customers' (we'll compare this to our crypto shredded record later)
echo '{ "userId" : 10000002, "name" : "Mary Brown", "password" : "abc123", "visa" : 4111111111111111 }' | \
docker compose exec -T kafka-client \
  kafka-console-producer --bootstrap-server conduktor-gateway:6969 \
  --topic customers

# 4. Consume all the records in the 'customers' topic (use command 'ctrl-c' to exit)
docker compose exec kafka-client kafka-console-consumer \
  --bootstrap-server conduktor-gateway:6969 --topic customers --from-beginning

You should see something like the following final output for the customer data stored in Kafka. Both password and visa are encrypted as configured, whilst other fields (eg name) remain unencrypted.

{"userId":10000001,"name":"Joe Smith","password":"AAAABQAAAAKNxgtetTtIBLsCuCd5LJ7kIuzPa+/h6sm+fwHPmDhhMEF3qViBjD4LgxVExq8ct4wZ+DMxJKC86bFgUQ==","visa":"AAAAAgAAAAKNxgtetTtIBLsCuCd5LJ7kK9me1JMK6wuH4r9e30JS43cSY/7QRxy8pxT0zTIUWzxeoc5XigVmIEJLstrf361SVmZq8PCy5qg7tLM92uO9o+TrTFJIa/dxZHj4pgRcUg12ZjKku+3BTXBXPjP77DCyCsW48rUxBDK67dp6RBc="}
{"userId":10000002,"name":"Mary Brown","password":"AAAABQAAAAJJLWtew1NLwZdoDS87B0qSV8/MdZ9sTWj2EVN1c3j+yXHX0FVx8fOEcA9A/flr7RwONuByQ9GeuZA=","visa":"AAAAAgAAAAJJLWtew1NLwZdoDS87B0qS/3NEgLjPO/32aD5LFN56FmpyRCZzfJ4HN8cgHxTCorNdBup5pnlbi8tFgKKWnqrUnRNTBq5haKXsbJm4/mcd3XFWSSJeIkXtuxb1Lb2SUOVQQiZDmbk3o3p9nVcPCRYR7sx04+++S3Sj6VqM7n8="}

4. Inspecting the created keys​

Gateway creates keys on demand, so now that we've produced two messages with two different secretIds (secret-for-10000001 and secret-for-10000002) we would expect to see associated EDEKs persisted in a keystore. We would not expect to see them in our Vault KMS. This should only ever contain the master key (/transit/keys/master-key) which was used to encrypt them. Take a look for yourself,

The following curl command should return exactly one key (master-key).

curl \
    --header "X-Vault-Token: vault-plaintext-root-token" \
    --request LIST \
    http://localhost:8200/v1/transit/keys/

Instead we would expect to see the EDEKs in the Gateway Encryption Keys Store (the Kafka topic _conduktor_gateway_encryption_keys)

# (use command 'ctrl-c' to exit)
docker compose exec kafka-client kafka-console-consumer \
  --bootstrap-server conduktor-gateway:6969 --topic _conduktor_gateway_encryption_keys \
  --from-beginning --property print.key=true --property key.separator="|"

You should see something like the following,

KeyValue
{"algorithm":"AES128_GCM","keyId":"gateway-kms://secret-for-10000001","uuid":"8dc60b5e-b53b-4804-bb02-b827792c9ee4"}{"edek":"vault:v1:5FWLvI/AcXn5ABTBPGONK5yqNVEdnxDfU6FWN8hvIb5aKy3lsXxgFF9LfLr6Og=="}
{"algorithm":"AES128_GCM","keyId":"gateway-kms://secret-for-10000002","uuid":"492d6b5e-c353-4bc1-9768-0d2f3b074a92"}{"edek":"vault:v1:5RALxs8+0z4w9Xu9ZlEhdTzrti3Laj5JD+5oF06TafLAg+0qHLPjGog3T+jSTA=="}

There are two records (one for each EDEK) to match the two keyIds. As the number of records with different keyIds grows this can lead to substantial cost savings and improved performance over storing the same keys in the KMS.

The record Key is composed of,

  • algorithm: as hardcoded in the configuration and then used to generate the associated DEK in this record
  • keyId: as templated in the configuration and evaluated using data from the associated record (the userId field)
  • uuid: uniquely generated per inserted record

The record Value is composed of,

  • edek: the DEK generated by Gateway and encrypted using the Gateway KMS
info

The uuid field is necessary because it is possible for two different gateway nodes to process a record with the same userId for the first time at the same time. In such a scenario two Encryption Keys Store records with the same keyId but a different uuid would be created (thus avoiding a race condition). This means that it is possible (although relatively rare) for the same keyId to have multiple EDEKs (ie for there to be multiple EDEKs for the same user).

tip

Make a note of the UUID returned for "keyId":"gateway-kms://secret-for-10000001" as we will need it for crypto shredding the associated EDEK in step 7: Crypto shredding.

5. Gateway Decryption interceptor configuration​

Before we can demonstrate crypto shredding we should show records being decrypted. The following decryption interceptor configuration mirrors the encryption interceptor configuration that we added earlier.

As before the interceptor configuration can be applied to Gateway via the Conduktor CLI or via the Console UI and has a different format in each case.

apiVersion: gateway/v2
kind: Interceptor
metadata:
  name: sensitive customer data decryption
spec:
  pluginClass: io.conduktor.gateway.interceptor.DecryptPlugin
  priority: 100
  config:
    topic: customers
    kmsConfig:
      vault:
        uri: http://vault:8200
        token: vault-plaintext-root-token
        version: 1
      gateway:
        masterKeyId: vault-kms://vault:8200/transit/keys/master-key

To deploy this interceptor configuration paste the yaml into a file called decryption-interceptor.yaml in the same directory as your docker-compose.yaml and run the following command

docker compose exec -it conduktor-ctl conduktor apply -f /conduktor-ctl/decryption-interceptor.yaml

You should see the following output

Interceptor/sensitive customer data decryption: Created

6. Consuming and decrypting data​

With a decryption interceptor configured on consumption from the same topic we have been encrypting data produced to it is now possible to decrypt and read the records we produced and observed as encrypted earlier.

# (use command 'ctrl-c' to exit)
docker compose exec kafka-client kafka-console-consumer \
    --bootstrap-server conduktor-gateway:6969 --topic customers \
    --from-beginning

You should see the following records exactly as they were originally sent.

{"userId":10000001,"name":"Joe Smith","password":"admin123","visa":4111111145551142}
{"userId":10000002,"name":"Mary Brown","password":"abc123","visa":4111111111111111}
note

Even though we now produce and consume un-encrypted data the password and visa fields are still encrypted at rest (ie on disk in the Kafka broker). If you were to delete the decryption interceptor all of the fields would go back to remaining encrypted when consumed.

7. Crypto shredding​

Records encrypted with Gateway KMS can have their EDEKs crypto shredded by tombstoning the associated record in the Encryption Keys Store topic. The same keyId can have multiple record entries so it is important to tombstone every record sharing the same keyId (each will have a unique uuid). Conduktor doesn't currently offer an automated solution for this process. You need to read the entire topic manually and find every record which has the keyId which needs tombstoning.

For this HOWTO we only published two records and both had a different keyId so we can be confident that only one record needs tombstoning.

# 1. Produce a record that tombstones the EDEK associated with 'keyId': 'gateway-kms://secret-for-10000001'
echo '{"algorithm":"AES128_GCM","keyId":"gateway-kms://secret-for-10000001","uuid":"<UUID_FOR_10000001_FROM_STEP_4>"}|NULL' | \
  docker compose exec -T kafka-client \
  kafka-console-producer --bootstrap-server conduktor-gateway:6969 \
  --topic _conduktor_gateway_encryption_keys \
  --property "parse.key=true" \
  --property "key.separator=|" \
  --property "null.marker=NULL"

# 2. Consume all the records in the 'Encryption Keys Store' topic (use command 'ctrl-c' to exit)
docker compose exec kafka-client kafka-console-consumer \
  --bootstrap-server conduktor-gateway:6969 --topic _conduktor_gateway_encryption_keys \
  --from-beginning --property print.key=true --property key.separator="|"

The records in the Encryption Keys Store topic should now show the latest record value for the EDEK we crypto shredded as null (or empty if consuming via the CLI). Gateway will now be unable to decrypt data associated with it.

You can check for yourself by repeating Step 4: Inspecting the created keys. You should expect to see something like the following (in reverse order if using the GUI),

KeyValue
{"algorithm":"AES128_GCM","keyId":"gateway-kms://secret-for-10000001","uuid":"9871c88e-d5dd-4cb2-86e0-4d65ef0a8361"}{"edek":"vault:v1:rTbfUBpiPM23WAGu2njeeeqty60BzIPedhl6CL3jaViGDP9Nf0EfRe9+0pbD4A=="}
{"algorithm":"AES128_GCM","keyId":"gateway-kms://secret-for-10000002","uuid":"381e3464-8876-4bcc-9b75-ff49d19a918f"}{"edek":"vault:v1:c8h+LWonSpPi0Q8Zd8KjHE9GTcxXzvUwAEULDVPQdxDKkSLtiN9teE8lhDeHNw=="}
{"algorithm":"AES128_GCM","keyId":"gateway-kms://secret-for-10000001","uuid":"9871c88e-d5dd-4cb2-86e0-4d65ef0a8361"}null

The latest record value for "keyId":"gateway-kms://secret-for-10000001" (or first entry if using the GUI) should be null. This indicates that it has been crypto shredded.

note

There are two entries for "keyId":"gateway-kms://secret-for-10000001" because Kafka compaction isn't instantaneous. Gateway guarantees to use the latest record and to prevent decryption if the associated EDEK has been shredded. However, the earlier record still exists on disk and its EDEK is available to anyone who consumes the Kafka topic directly. This means that it is technically possible for someone with access to the topic and the KEK to recover crypto-shredded data. The key should eventually be deleted because the topic is configured for compaction, but there is no guarantee of when that will occur. Reducing the time until (encrypted) encryption keys are deleted from disk is possible, but beyond the scope of this HOWTO. The important thing to remember is that Gateway (and therefore users) will be instantly unable to decrypt data that has been crypto shredded, as the next section will demonstrate.

8. Verify crypto shredded record no longer decrypts​

If you repeat step 6 (Consuming and decrypting data) you should now see that only the data from one of the records is decrypted. The data associated with the EDEK that we crypto-shredded (for userId: 10000001) remains encrypted.

{"userId":10000001,"name":"Joe Smith","password":"AAAABQAAAAKYcciO1d1MsobgTWXvCoNh51wLjVYSfeSdM8YncPhs5gSQhNYagQO6j74HXLw0nq9cyorBJ21qBollyQ==","visa":"AAAAAgAAAAKYcciO1d1MsobgTWXvCoNhJUWekrCBA77tBU2WfYu+z6eSeRwIuS5UluZs8m/PjSoAEsyL+2Xslt0j6XmvnzfMcFMzeZlk/U+2FNSnTEjB/CjXGXiSr5kA4Idr1dFx6kqJ4wtd0jk8e7kl8z1aAMXTKLyU5Xk6bk4inv7lpMs="}
{"userId":10000002,"name":"Mary Brown","password":"abc123","visa":4111111111111111}
note

Gateway crypto-shredding only applies to historical records. If a new record was produced for userId: 10000001 at this point then a new EDEK would be created (with a new UUID that doesn't conflict) and the new record would be decryptable. (Historical records would remain crypto-shredded.)
